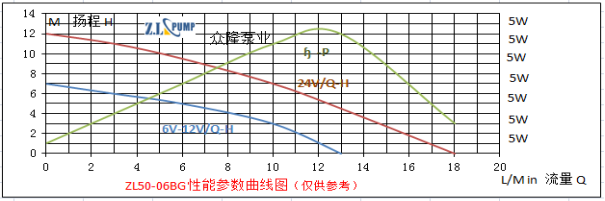

Model | ZL50-06BG | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0W-5W / 12V: 0W-5W / 24V: 0W-5W | ||||||||
Static Water Head | 0-12 M | ||||||||
Static Flow Rate | 0-18 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000hrs | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable both on land and in water (submergible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <45dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤100℃ (Aluminum alloy shell, PCB board outside) | ||||||||
Application | Solar water heater, Pipe pressurization, Car shower, small fountain /aquarium, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remarks | |||||
Length(mm） | Width(mm） | Height(mm） | OD(inch） | ID(mm） | OD(mm） | ID(mm） | Inlet with thread, outlet with non-slip insert | ||
76 | 57 | 106 | IP67 | G3/8″ Standard Pipe Thread | φ10 | φ10 | φ7 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
