| Model | ZL25-08 | ||||||||
| Working Voltage Range | DC：4.5-12V | ||||||||
| Rating Power | 4.5V：0.5-2W / 6V：1-3W/ 12V：2-3.5W | ||||||||
| Static Water Head | 0.4-2．2M | ||||||||
| Static flow rate | 0.6-3.2Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition≤24hour，life＞20000hour | ||||||||
| Working Environment | PH value：PH4-11、non-Diving | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜32dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤100℃ | ||||||||
| Application | Coffee machine, water dispenser, water circulation system, tabletop fountain, aquarium, small medical equipment, etc. | ||||||||

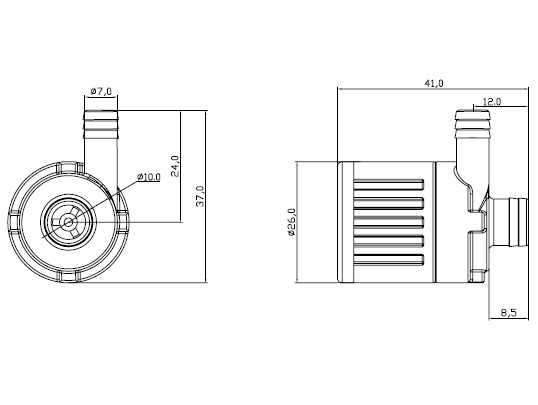

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Inlet and outlet with anti slip strip | ||
| 41 | 26 | 37 | IP67 | φ10.5 | φ7 | φ7.5 | φ4 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
